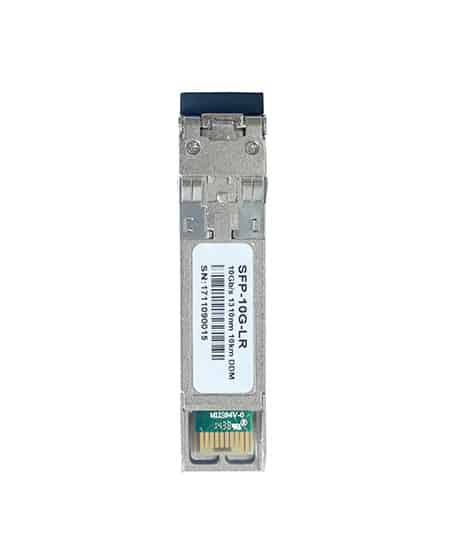

SFP-10G-LR Optical Transceiver Module

Category Tags ,

Product Highlights

Max. Power Consumption 1W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Hot Pluggable SFP+ MSA Compliant
Support Real-time Configuration
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
Class 1 FDA Laser Safety and RoHS Compliant
IEEE 802.3ae Compliant

Description

SFP-10G-LR Compatible 10GBASE-LR SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

SFP-10G-LR compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Specifications

Compatible SFP-10G-LR Vendor Name ETT
Form Factor SFP+ Max Data Rate 10.3125Gbps
Wavelength 1310nm Max Cable Distance 10km
Connector Duplex LC Media SMF
Transmitter Type DFB Receiver Type PIN
TX Power -8.2~0.5dBm Receiver Sensitivity <-14.4dBm
Powerbudget 6.2dB Receiver Overload 0.5dBm
